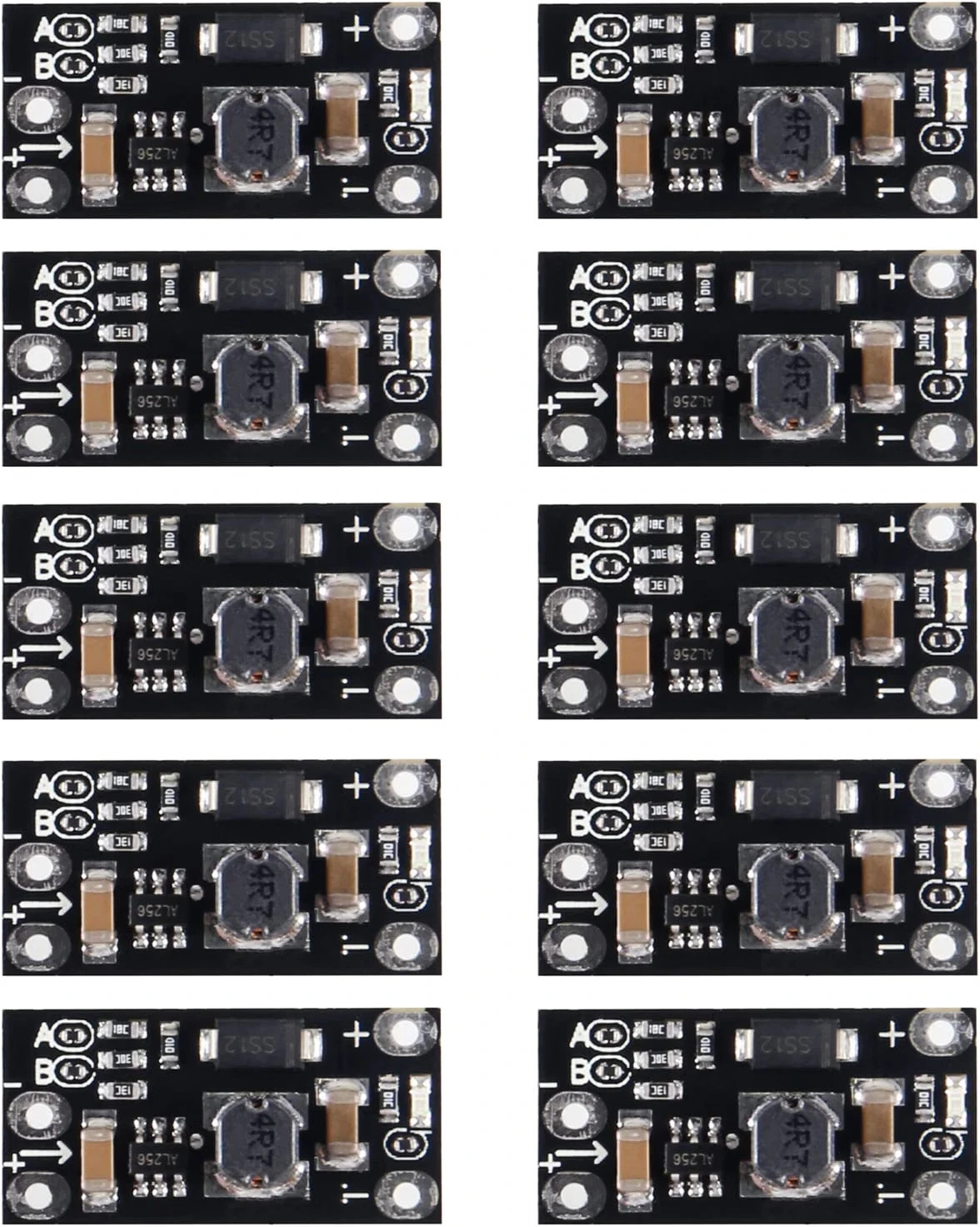

Everpinn | 10-Pack DIANN DC-DC Step-Up Boost Converter Regulator Modules Everpinn 10-Pack DIANN DC-DC Step-Up Boost Converter Regulator Modules Technical Specifications Product Type DC-to-DC Step-Up Boost Converter Voltage Regulator Module Unit Quantity 10-Pack Complete Set Input Voltage Range 2.5V to VOUT (Input must be lower than set output voltage) Selectable Output Voltages 5V / 8V / 9V / 12V (Default Setting: 12V DC) Output Current Capacity 3.7V Lithium Input: 5V/1A, 8V/0.7A, 12V/0.5A (varies by load configuration) Power Source Type DC Power Source (Batteries, Solar Panels, Rectifiers, DC Generators) Module Color & Terminals Black Board with 2-Pin Connection Terminals Brand & Model Number DIANN (Model: 2D3C3624-Cd10-4872-Ad97-F823F4202Ce8) Package Dimensions & Weight 3.11\" x 1.97\" x 0.75\" / 0.02 Pounds (0.317 oz) UPC / EAN 687117701633 / 0687117701633 Country of Origin United States Key Features

Multi-Voltage Output Options: Adjustable output configuration supporting 5V, 8V, 9V, or 12V DC, with a factory default setting of 12V.
Wide Input Flexibility: Accepts low DC input voltages ranging from 2.5V up to VOUT, making it ideal for single-cell lithium battery and solar applications.
Versatile Power Source Compatibility: Can be powered by any suitable DC power source including lithium batteries, solar panels, rectifiers, and DC generators.
Low No-Load Power Consumption: Default 12V output indicator consumes ~6mA; disabling the indicator drops no-load input current to under 1mA.
Value 10-Pack Bulk Set: Supplied in a convenient 10-piece package for prototyping, electronics hobbyist builds, and multi-device DIY electrical projects.

Setup & Wiring Guide 1 Preparation Verify Input & Output Requirements

Ensure your DC input voltage source (e.g., 3.7V battery or solar panel) is lower than your target output voltage (5V, 8V, 9V, or 12V).

2 Configuration Set Desired Output Voltage

Adjust the voltage selection pads or jumpers on the module if you require an output other than the default 12V setting.

3 Wiring Connect Power Terminals

Solder or connect your DC power source to the input pins and attach your load device to the output terminals.

4 Testing Power On & Monitor

Energize the circuit, verify the output voltage with a multimeter, and check the LED indicator status to ensure efficient operation.
