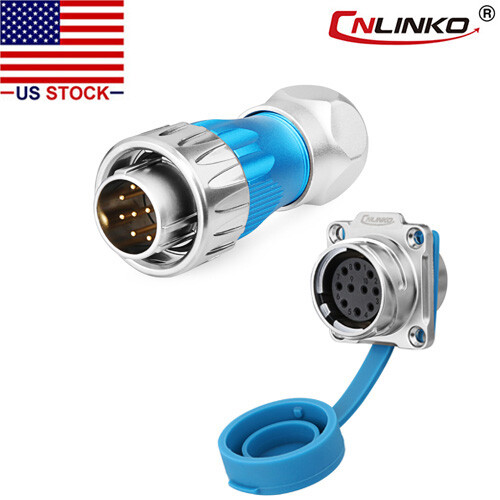

10 Pin Power Connector Male Plug & Female Socket Waterproof IP67 HeavyDuty Metal:
$38.49

We are the only authorized retailer for \"CNLINKO\" brandconnector products, with complete warranty.
Selling ItemsModel Number:
Plug: DH-24-C10PE-03-001ASocket: DH-24-J10SX-03-401A
Features:
● 24mm Installation hole figure● Easily lock by Plug/unplug snap-fastener , ensure safe and stable● Varies types for choice, include power, signal, USB,RJ45,fibre optics, meet different industrial demands● Stable power and signal transmission, multi-pins power (2-12 pins) with positive and negative type● Formed wire technology on pins keep much stable while transmit and temperature rise● Solder and pressure on copper needles completely comply with outdoor installation● Protection level:IP67
Specification:
Cable specification1.0m㎡～1.5m㎡/18-16 AWGDiameter rangeΦ10mm～Φ13mmContact diameter × numberΦ1.5x10Rated Current (A)10AOperating voltage (AC.V.rms)400VContact resistance<30mΩTemperature rise10A contact temperature below 30℃,12A Voltage (AC.V) 1 minute2500VInsulation resistance＞500MΩProtection levelIP67Durability≥500 timesWorking temperature-40℃～80℃Connecting modePlug/unplugAssembly wireSolderHousing, the insulating partsHigh-performance engineering plasticsHardwareZinc Alloy (pearl hard chrome)Copper needlesCopper alloy (gold-plated 4U)Waterproof circleSilica gelFlammability ratingUL94-V0
DH-24 Series Specification Sheet
