I have to make a project on 'Transistor As A Switch' and draw a graph between the input & output voltage showing the cut-off region,saturation & the active region.

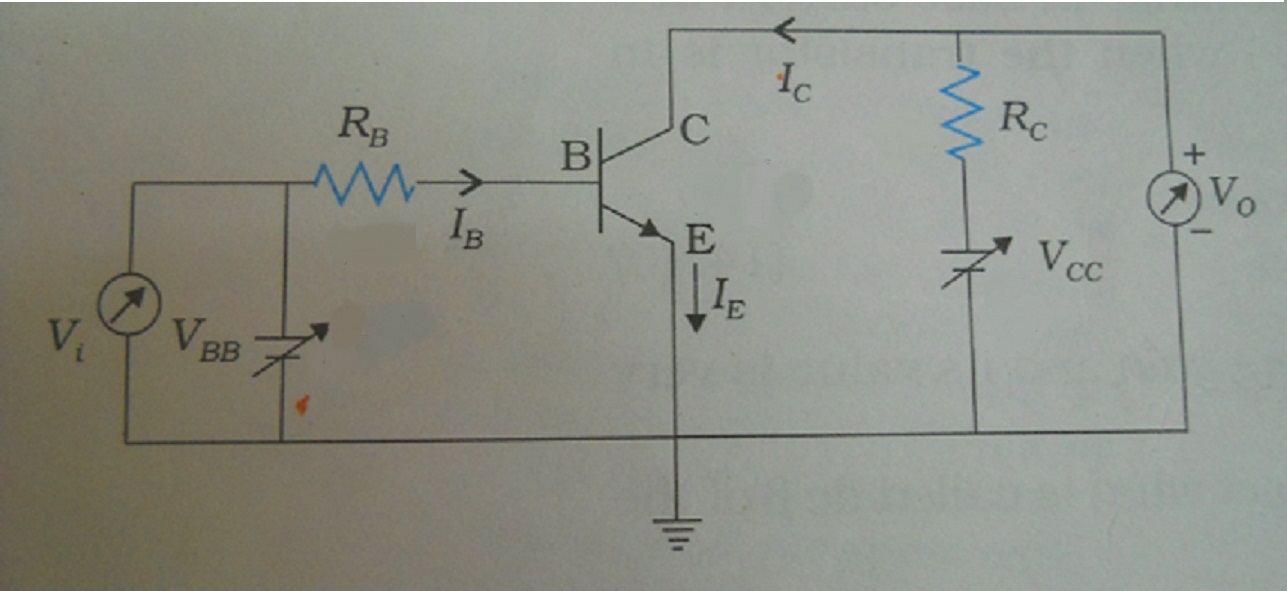

I have attached the circuit diagram[b].The problem is that I dont know what values to take for the various components[/b].
I tried making it with BC547 or BC 548 transistor,100k and 1k as Rb & Rc respectively,3volt for Vbb and Vcc(varied the voltage using a 10k potentiometer),Multimeter as Vi and Vo to measure the input and output voltage.[b]Could not get any significant result,the votage kept varying a lot[/b].

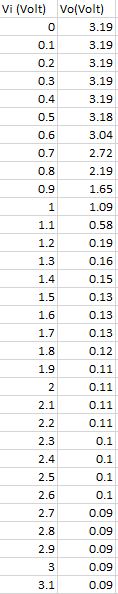

From what I understand,when Vbb will be less than 0.7V then multimeter Vo reading is equal to Vcc.As Vbb increases above 1V,Vo decreases.But as I said there was irregular voltage in the multimeter Vi.
