GQ EMF-390 3in1 multi-field Electromagnetic EMF Meter 5G RF Detector Data logger For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

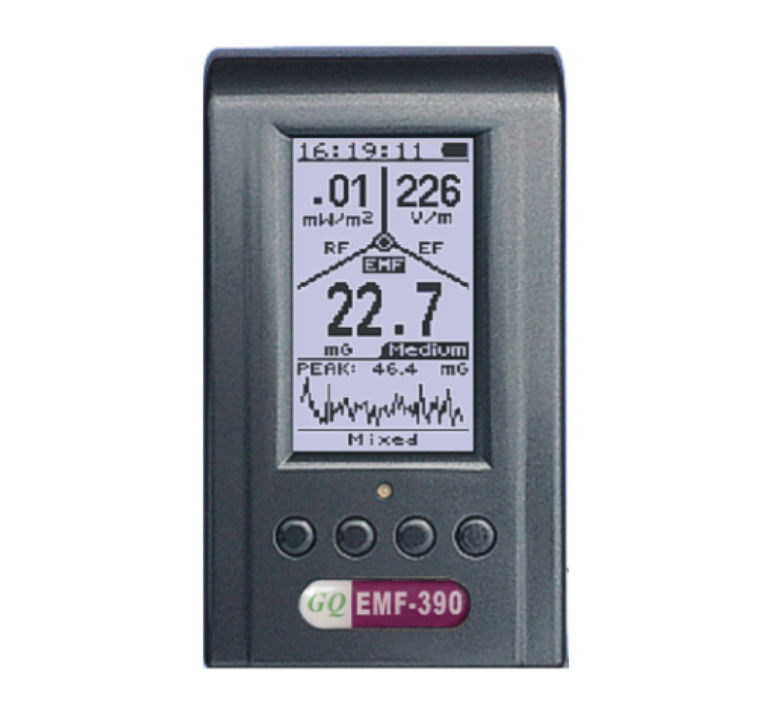

GQ EMF-390 3in1 multi-field Electromagnetic EMF Meter 5G RF Detector Data logger:
$119.90

Advanced GQ EMF-390 Multi-Field, Multi-FunctionEMF Meter and RF Spectrum Power AnalyzerWith Data Logger (Patent Pending)
GQ EMF-390 is ready, the multi-function digital EMF meter is designed to be a portable and convenient device. It can be used as industrial, commercial maintenance, research, evaluation, simulation and other analytical or scientific applications in areas such as industrial plants, public utilities, universities, laboratories, and electronic repair shops. The device integrated testing features includethree-axis Electromagnetic Fields, Electric Field, Radio Frequency and RF Spectrum Analyzer. The meter is able to identify the common source from EMF measured, such asPower Line, Smart meter, WiFi, Microwave, 2G.3G,4G,5G Cell Toweretc. It also comes with the built-in audible and visual alarm. It can be used for EMF, ELF, EF, RF detection and monitoring both indoor and outdoor, as well as in other similar environments. It can continually monitor the radiation. When connect the device to a PC, PC software can download the radiation data to the computer and the user is able to analyze those data later. The device also installed a high contrast black/white LCD module and one front LED indicator.The built-in electronic gyroscope allows users to read the data from upside down view easily.GQ RF Browser is specifically designed for Cellphone, Cell Tower, Smart Meter, WiFi RF radiation monitoring.Safety suggestion indicator provides a simple and easy way to understand overall radiation risk.EMF-390 has built-in flash memory and it is able to log the real-time data EMF, EF and RF power every second. Users areable download the data later from a free software EMF-PRO.The device is equipped with an USB port, utilized for communication and external power supply/charging of the internal rechargeable Li-Ion 3.6V/3.7V battery. The GQ EMF-390 internal rechargeable battery can be charged with a standard USB port, USB charger or with a computer USB port. Using external power, continuous data monitoring is possible. Using either power adapter you will not have to worry about the batteries charge condition or any data loss. The EMF-390 also has a real time clock on board for time-related data measurement.The meter installed multiple sensors to ensure maximum scale/range measurement and highest accuracy.High sensitivity meter allows you to check EMF/RF radiation easily. Examples: computer mouse, car remote key, cell phone, cell tower, cordless phone, static electricity, electric field, WiFi, computer laptop, microwave, electric heater, hair dryer, vehicle engine, light, outdoor power line. With RF spectrum power analyzer, you can monitor the WiFi signal power, Smart meter signal power, spy wireless video camera signal, even track radio/TV signal in air.
Model Selection Guide
EMF-360 V2EMF-360 Plus V2EMF-380 V2EMF-390Three Axis EMFYesYesYesYesRF RadiationUp to 8GHzUp to 8GHzUp to 8GHzUp to 10GHzRF Spectrum Power AnalyzerNo2.4GHz-2.5GHz2.40 to 2.5GHz
300 – 348MHz
387– 464MHz
779-928MHz
76 to 108MHz
65 to 76MHz
50 to 65MHz
2.40 to 2.5GHz
300 – 348MHz
387– 464MHz
779-928MHz
76 to 108MHz
65 to 76MHz
50 to 65MHzRealtime ClockNoNoYesYesData (Electromagnetic Field)

Triple axis (X, Y, Z)

Range: 0.0~500mG

EF (Electric Field)

Range: 0V/m to 1000V/m

Resolution: 1 V/m

RF Field (Radio Frequency Field)

Frequency: up to 10GHzRF Spectrum Analyzer

Frequencies in 7 bands up to 2.5GHz

Main features :

Audible alarm: beep/siren

Visual alarm: green, red LED

Operating temperature & humidity: 5 to 40 degree C, below 80% RH

Working Voltage: 3.6-3.7V

Display: LCD dot matrix, back lighted

Power Consumption: 25mW to 125mW (backlight dependant)

Power: Supply 3.7V Li-Ion battery / USB power

Dimensions 135 x 78 x 25 mm (5.25"x 3" x 1")

Auto Identify the EMF Radiation Possible SourceGQ EMF Meter is capable to identify the common possible EMF radiation source once it collected valid data from the source. The common sources include : Power Line, WiFi, Microwave, static electricity, AC EF(AC voltage Electric Field) etc. It also can provide detailed information of the source. Such as power and approximate frequency.
Open Communication Protocol
GQ EMF Meter provides open GQ RFC1701 communication protocol for easier system integration. Users are able to send thecommand to operate the meter remotely. See software download section for detailed GQ RFC1701 protocol.GQ EMF-PRO Utility Software
GQ EMF Meter comes with a free Windows utility software. Users are able to remote control the unit and get the EMF, RF data from thedevice. It also can save the data into the .csv spreadsheet file. See software download section for detailed GQ RFC1701 protocol.
For technical support, please visit our support forum on GQ Electronics forum page.GQ EMF-390 1:1 Simulator
Try the exact user interfacedemo(simulation) softwareof GQ EMF Meter before you buy it, please visit GQ Electronics LLC download page.User Manual/User Guide
A complete user manual/guide can be downloaded from GQ Electronics download page.
Package include items:
1. GQ EMF meter main unit.
2. USB cable
3. Quick start guide
4. Download link for a complete user guide in PDF version.
Warranty :
One year warranty
