Mesh current/ Node voltage HELP!

Discuss all your electronics engineering related technical problems and other questions pertaining to design problems in any field of Electrical/Electronics/Computer Hardware

Moderator: pebe

Mesh current/ Node voltage HELP!

Postby AaronR84 » Sat Sep 14, 2013 3:57 pm

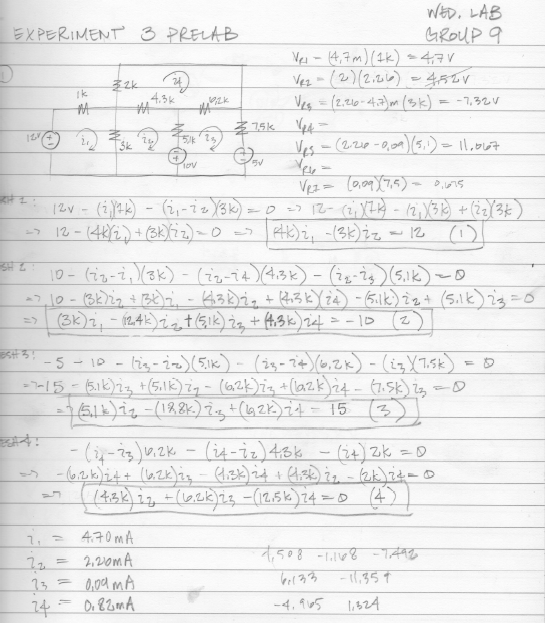

I have attached my calculations for the cct, which do not match up to my simulations in multisim and its driving me nuts. Can anyone see what I am doing wrong?

Thanks in advance, Aaron
Attachments
AaronR84

Posts: 2
Joined: Sat Sep 14, 2013 2:53 pm

Re: Mesh current/ Node voltage HELP!

Postby AaronR84 » Sun Sep 15, 2013 3:23 am

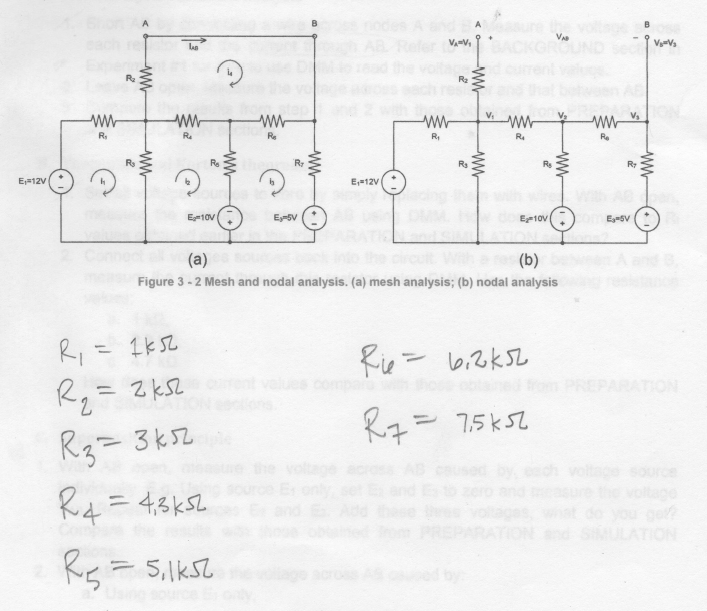

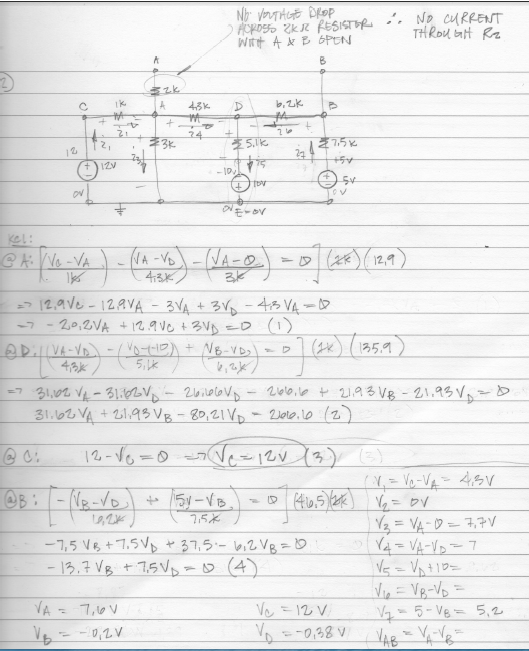

Ok, so I have confirmed that there was an error in my simulation. Now I know that my mesh current equations are correct for the cct with A and B "shorted". Now that my simulation in multisim is correct, I cannot find the correct node voltage equations for the cct where A and B are open. I am trying to do source transformations now possibly to find the right answer.
AaronR84

Posts: 2
Joined: Sat Sep 14, 2013 2:53 pm
