Replacing LED bulbs on a small LED Sign

Postby B1gRed » Thu Aug 20, 2015 12:18 am

Hi,

I have very limited circuit and electrical knowledge. I bought a small "PIZZA" LED display sign from a garage sale. I want to replace the small LED bulbs with 5mm LED bulbs for it to be brighter. I have put in the new LED bulbs in exact the same way but I can only get a section to turn on. Please see attachment for pictures. Please help!
Attachments

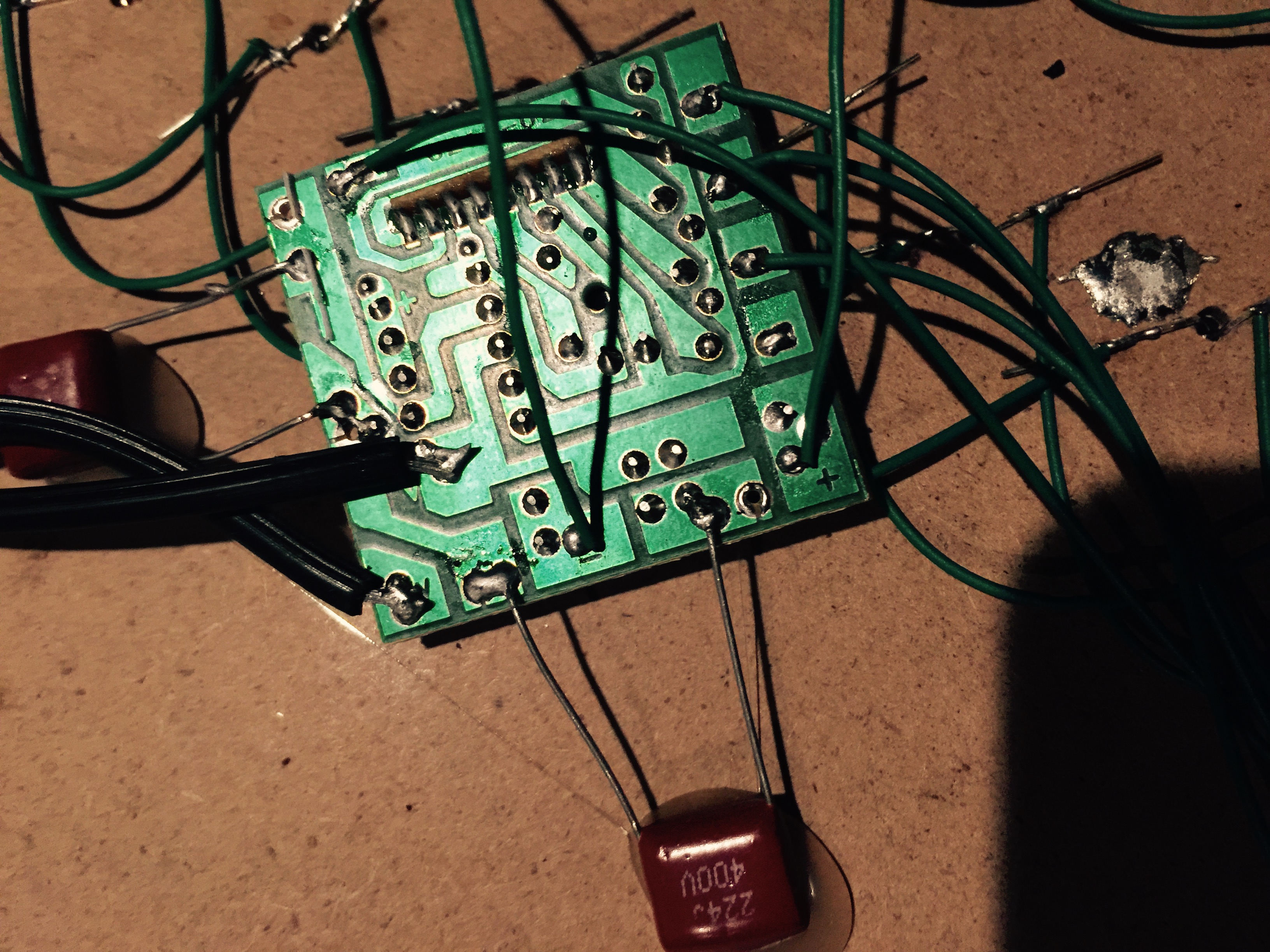

zoom in.jpg
Not enough Power?
zoom in.jpg (1.9 MiB) Viewed 12018 times
full after.jpg
Only a section in the middle light up. Double checked all connections.
full after.jpg (1.85 MiB) Viewed 12018 times

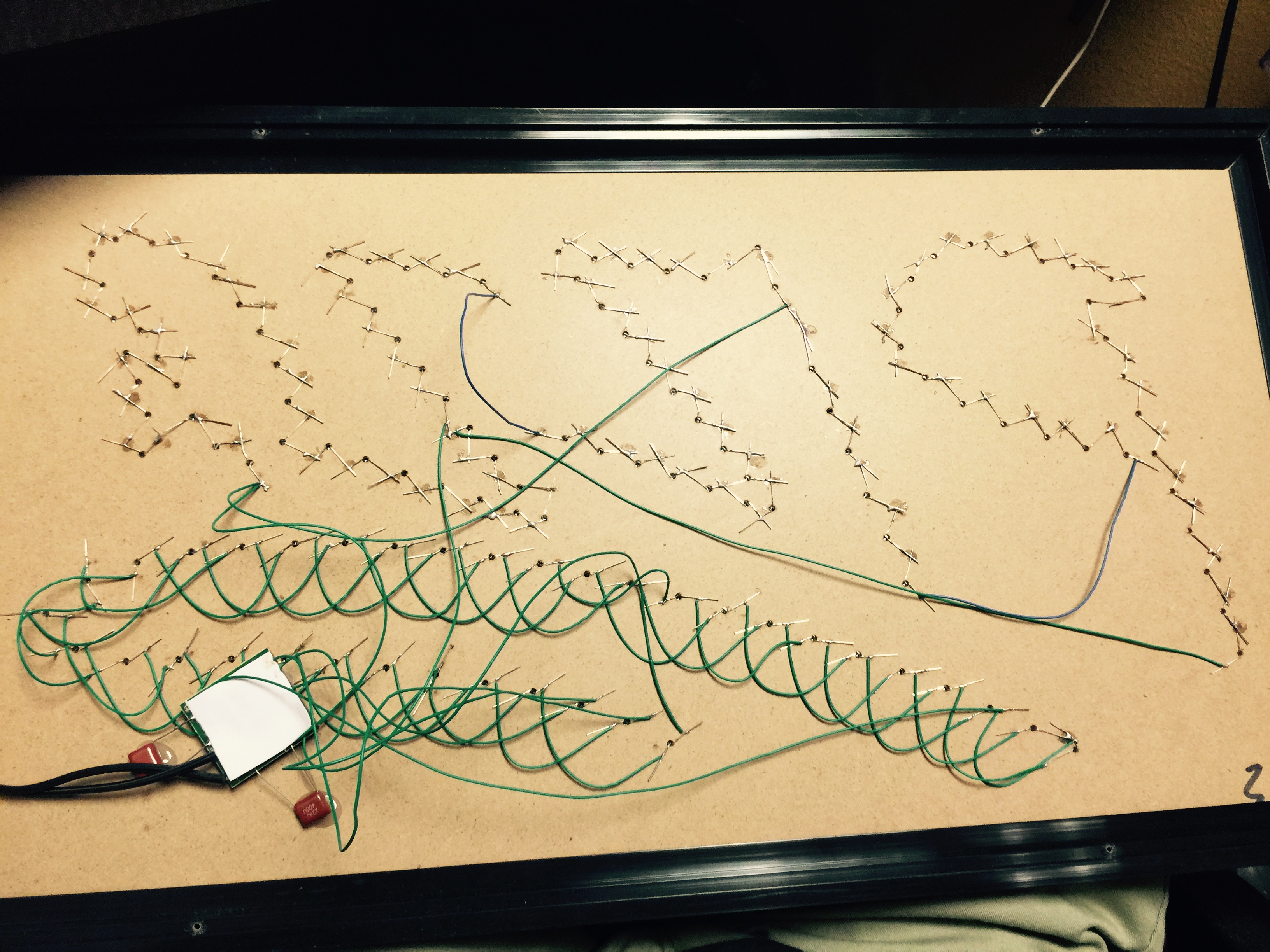

full before.jpg
How it came and it was working.
full before.jpg (1.52 MiB) Viewed 12018 times
B1gRed

Posts: 1
Joined: Wed Aug 19, 2015 11:59 pm

Re: Replacing LED bulbs on a small LED Sign

Postby PradeepKumar » Thu Apr 21, 2016 6:03 am

Might be you need to check with the wiring and its design before you place the new LEDs in the same position.
PradeepKumar

Posts: 48
Joined: Tue Apr 19, 2016 4:48 am
Location: Bangalore
