What is this? (Oldschool I think)

Postby tleao » Mon Mar 02, 2015 5:02 pm

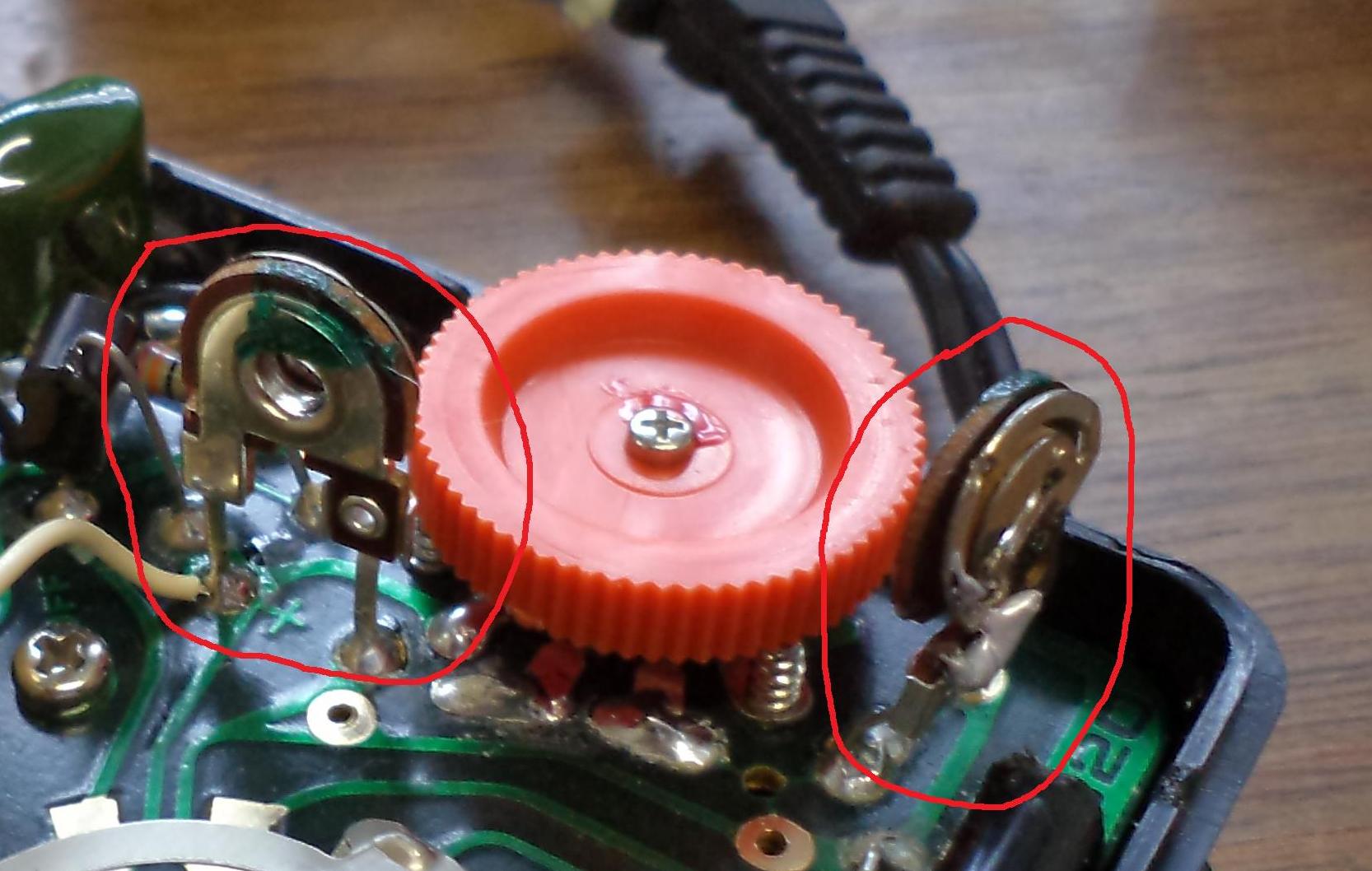

I circled the part in red.
It is from an old analogic multimeter made by Pantec (Division of Carlo Gavazzi).
One of them is broken and I need to replace it.
Thanks.
Attachments
tleao

Posts: 3
Joined: Mon Mar 02, 2015 4:54 pm

Re: What is this? (Oldschool I think)

Postby KMoffett » Mon Mar 02, 2015 9:07 pm

You are looking for something like this: http://www.allelectronics.com/make-a-store/item/tpk-100/100-ohm-trimpot/1.html, but we need to know the value. There are usually letters and numbers on the face of the metal frame. But, it could be replaced with a more modern trim pot.

Ken
KMoffett

Posts: 190
Joined: Sun Apr 13, 2014 3:41 pm
Location: Minnesota USA

Re: What is this? (Oldschool I think)

Postby tleao » Tue Mar 03, 2015 12:58 am

Ken,

It says 5K in it. I don't know if it is relevant but it has only two "legs" in it that are soldered to the board.

Thank you,

Tairone
tleao

Posts: 3
Joined: Mon Mar 02, 2015 4:54 pm

Re: What is this? (Oldschool I think)

Postby KMoffett » Tue Mar 03, 2015 2:40 pm

Sounds like a custom, but it can be replaced...just connect the wiper to one of the end terminals. If you can match the terminal spacing it will be easier. Can you measure the center to center spacing of the terminals?

Ken
KMoffett

Posts: 190
Joined: Sun Apr 13, 2014 3:41 pm
Location: Minnesota USA

Re: What is this? (Oldschool I think)

Postby tleao » Wed Mar 04, 2015 1:12 pm

Ken,

I replaced with one of those blue 5K Neopac 3296 trimpots. It works great.

Your help is much appreciated!

Thanks lot!

Tairone
tleao

Posts: 3
Joined: Mon Mar 02, 2015 4:54 pm

Re: What is this? (Oldschool I think)

Postby KMoffett » Wed Mar 04, 2015 4:44 pm

Thanks for the feedback. :) I'm disappointed if I never find out if the info I provide actually solves a problem.

Ken
KMoffett

Posts: 190
Joined: Sun Apr 13, 2014 3:41 pm
Location: Minnesota USA
