How to generate 16 different waveforms?

Discuss about electronic circuits here. Request help for circuits that you couldn't find anywhere else, how a circuit works etc. Discuss anything related to electronic circuits.

Moderator: pebe

How to generate 16 different waveforms?

Postby bfs.07 » Sat May 07, 2016 9:12 pm

Please help me

I need to make a circuit which generates, at least, 16 distinsts waveforms(change the frequency or the length)
I have to use a multiplexer with 16 differents outputs, a counter and a 5Hz clock.
I need also to change the output wave by switching the keys and put a LED in the output. (See the attachment)

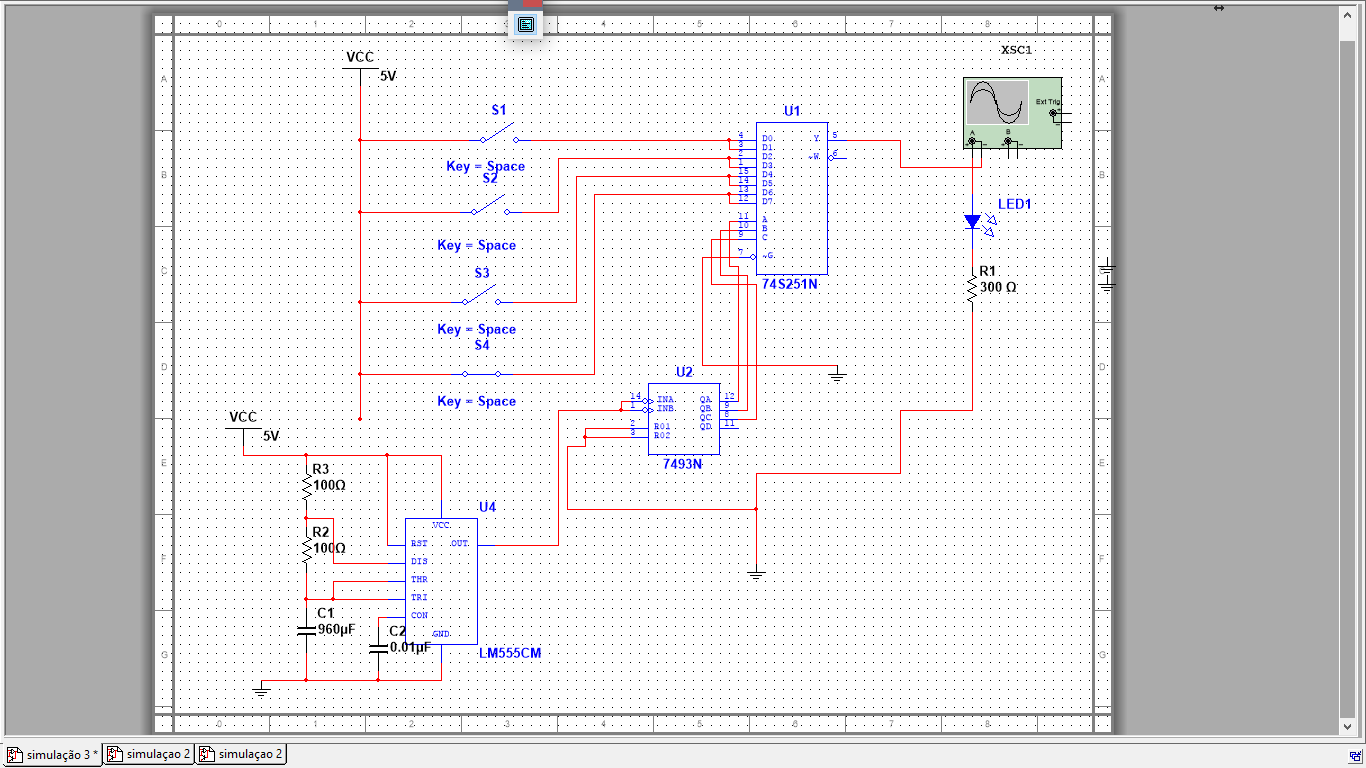

I've already done the clock using an IC 555 and I've tried to build this circuit with the multiplexer and the counter, but it doesn't work.

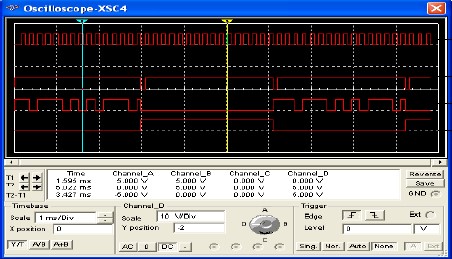

I will attach my current circuit and how should be my outputs(there´s only 4 in the picture I need to make 16 differents waveforms).

What changes should I make?

Thanks for your help!
Attachments
bfs.07

Posts: 1
Joined: Sat May 07, 2016 9:09 pm

Re: How to generate 16 different waveforms?

Postby PradeepKumar » Fri Jul 15, 2016 6:02 am

Connect the function generator to the system to be tested. Set the function generator to the waveform you wish to sweep with.
PradeepKumar

Posts: 48
Joined: Tue Apr 19, 2016 4:48 am
Location: Bangalore
